  • HU1300/1600 Series

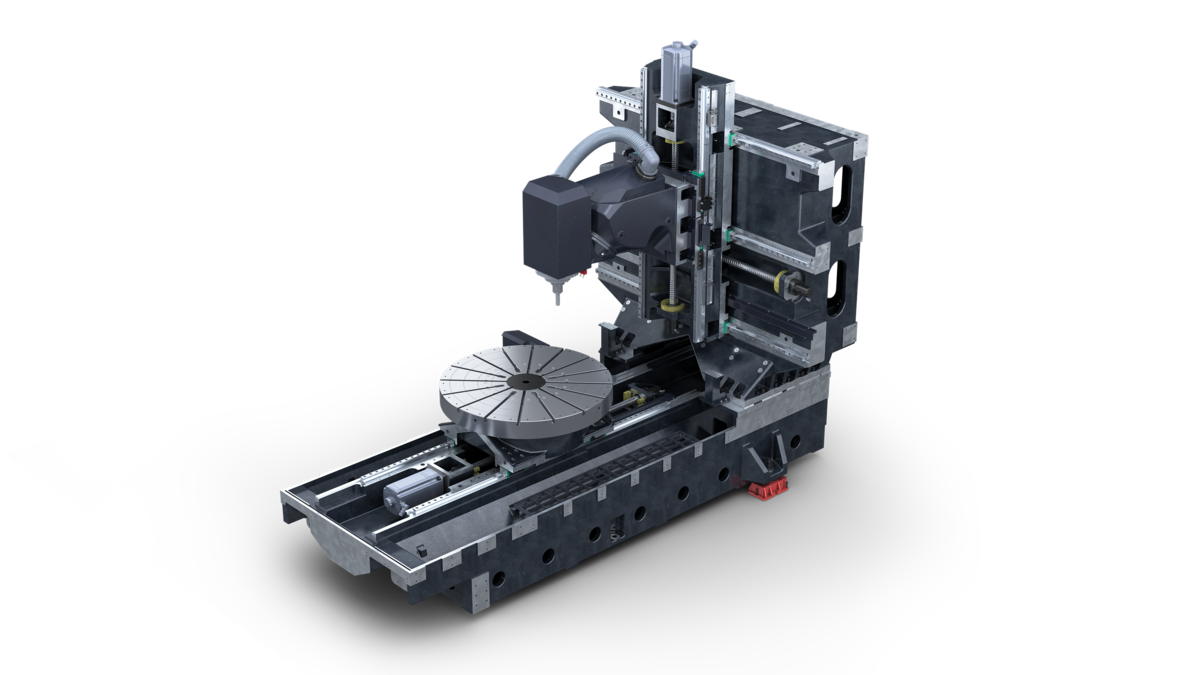

    WALL-BACK LATHE BED STRUCTURE

    broken image

    HIGHER RIGIDITY -

    ACHIEVE HIGHER PRECISION FOR PROCESSING



    • Higher rigidity machine bed with three-point support shows excellent stability in any situation.
    • The bed frame design has been analyzed by finite element analysis to ensure it has enough rigidity and good vibration damping capabilities to effectively keep the system stable.



    broken image

    HIGHER PRECISION -

    PERFECT QUALITY ASSURANCE



    • Higher accuracy is guaranteed by HEIDENHAIN close loop feedback system.
    • SPAIN SHUTON double nut screws effectively improve the thickness, position precision and cutting capacity.
    • Germany INA guideways, wider slider for long-term precision.
    broken image







    HIGHER DYNAMIC REACTION CAPACITY -

    EXCELLENT PROCESSING CAPABILITY



    • Max 15000rpm/min spindle as optional
    • SIEMENS 1FT servo motor for high dynamic reaction capacity.
    • SIEMENS SINUMERIK ONE PLC control system, with a robust control unit can lead to seamless operation and enhance the performance of simulations.
    • Rotary table size ∅1500 mm, max. load 5000kg。
    • Chain type tool magazine, servo motor control, with storage capacity max 120 tools.
    • ATC is controlled by the servo motor, less tool change time, improves efficiency.

  • TECHNICAL PARAMETER

    Traverse X/Y/Z（mm）

    1300/1300/1100（1300 model）

    1600/1500/1250（1600 model）

    Rapaid Traverse X/Y/Z(m/min)

    40/40/40

    Measuring System

    HEIDENHAIN Linear Encoders

    Control System

    SIEMENS SINUMERIK ONE

    Spindle

    HSK-100A

    Speed（rpm/min）

    8000 / 1000/ 12000/ 15000 rpm/min

    B-axis Swivel Range(°)

    -30° - 180°

    C-axis Travel(°)

    360°

    Max. Workpiece Size（mm）



    ∅1250*1600（1300 ）

    ∅1600*1900（1600）



    Max. Workpiece Weight（kg）

    2500kg （1300）

    5000kg （1600）

    Tool Magazine

    40/60/120

    Tool Changing Time(Tool to Tool)

    8s

    Footprint（㎡）

    • 6.5m*4.5m(1300 model)
    • 8.5*7.5m(1600 model)

    Weight（T）

    • 28T(1300 model)
    • 38T(1600 model)

    Optional

    • High Speed Spindle
    • Workpiece Prode
    • Tool Pre-setter
    • Coolant Through Spindle

    Optional

    • Remote Diagnosis Service
    • Turn - key Project
    • Adaptive Machining Function
    • Process Monitoring System/ Collsion Detection System
    • FMS System
